As part of the GK UVC light series, GK uv light sterilization operating room UV panel light is designed to be installed on walls for the disinfection of air in a wide range of applications. Four sides of the upper room radiation light design: improve the purification range and efficiency, four sides of the light belongs to the upper room radiation layer, only in the installed 2.1m high position UV-C ultraviolet radiation, Occupied area, so that the upper space is purified while commercial activities continue below.
UV Light Sterilization Operating Room UV Panel Light
Product Introduction
Features:
1.UV-C safety protection，Built-in PIR module on four sides
2.Air circulation system，Four sids fan outlet design: can quickly form air convection through the fan
3.Environmental health， Environmental protection - shortwave UV radiation peak at 253.7nm, no ozone emissions during or after use
4.LCD display, remote control

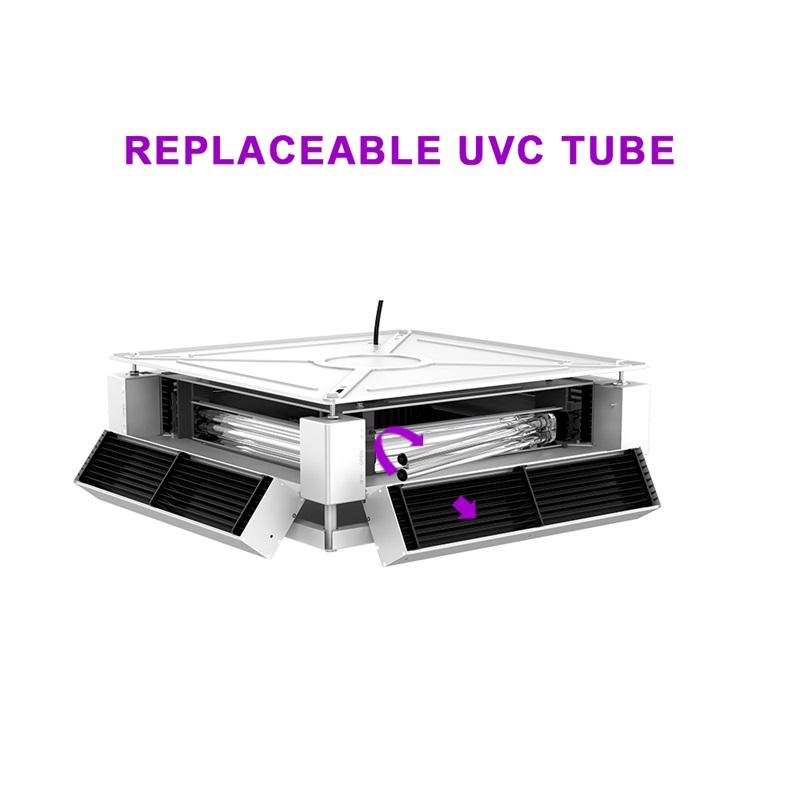

5.Easy to replace UV-C tube

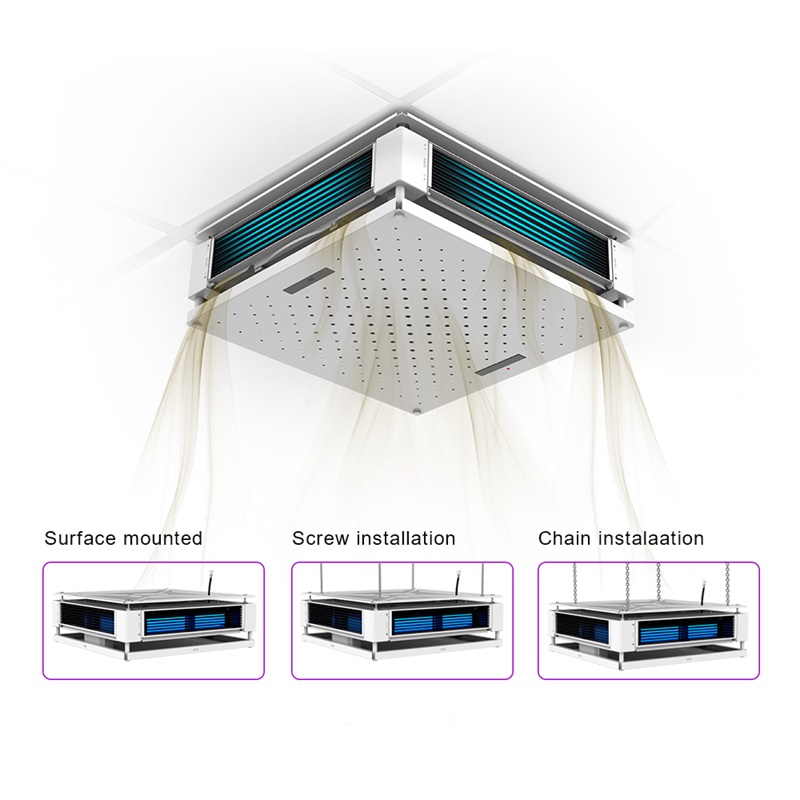

6.It can be ceiling mounted or pendant, widely used in offices, medical clinics, retail, food stores, hotels, schools,
banks, toilets and other public places.
7.Certificate: UL, CE, RoHS, FDA
Product Specification
Product Details

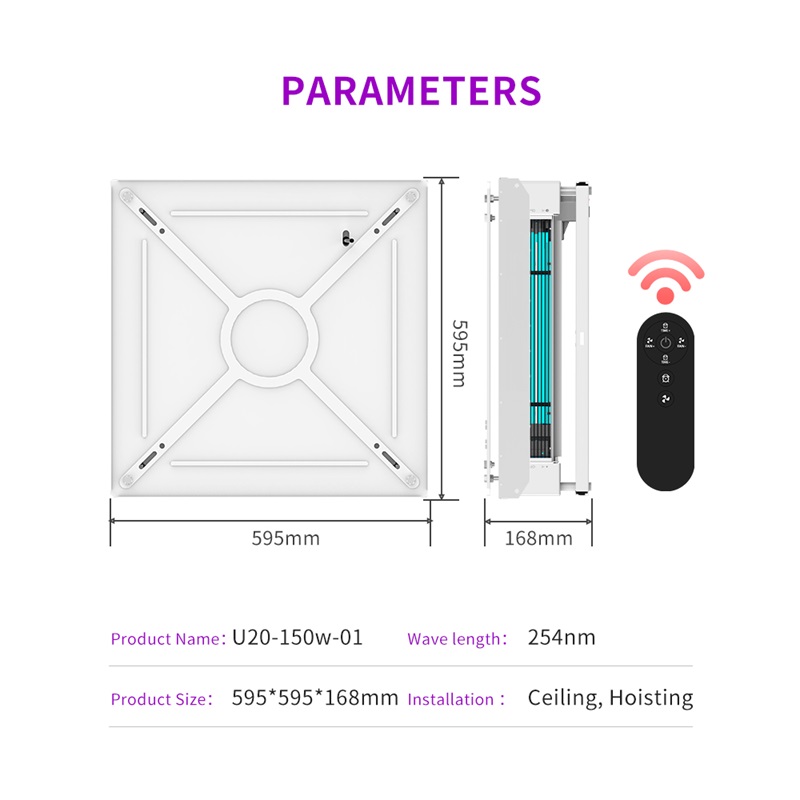

Product size: 595*595*168mm
Carton size (mm) (x0.0393=inch): 730*715*313mm
The light emission design of the upper flat radiation layer on the four sides: the sterilization range is improved, and the sterilization efficiency is enhanced. The light emission from all sides belongs to the upper flat radiation layer, and UVC ultraviolet radiation will only appear in the 2.1m high position of the installed machine, so as to achieve for the occupied area
There is a special high-energy ultraviolet lamp tube energy-gathering flat layer device installed on the upper end of the wall to form a flat layer in the upper part of the space. In the absence of circulating wind, the natural convection effect of indoor air is used to wait for bacteria and viruses floating in the air to rise to the surface. UV flat radiation will be quickly killed
Four-sided fan air outlet design: the fan can quickly form air convection, speed up indoor air circulation, quickly sterilize and disinfect, and improve the efficiency of sterilization.

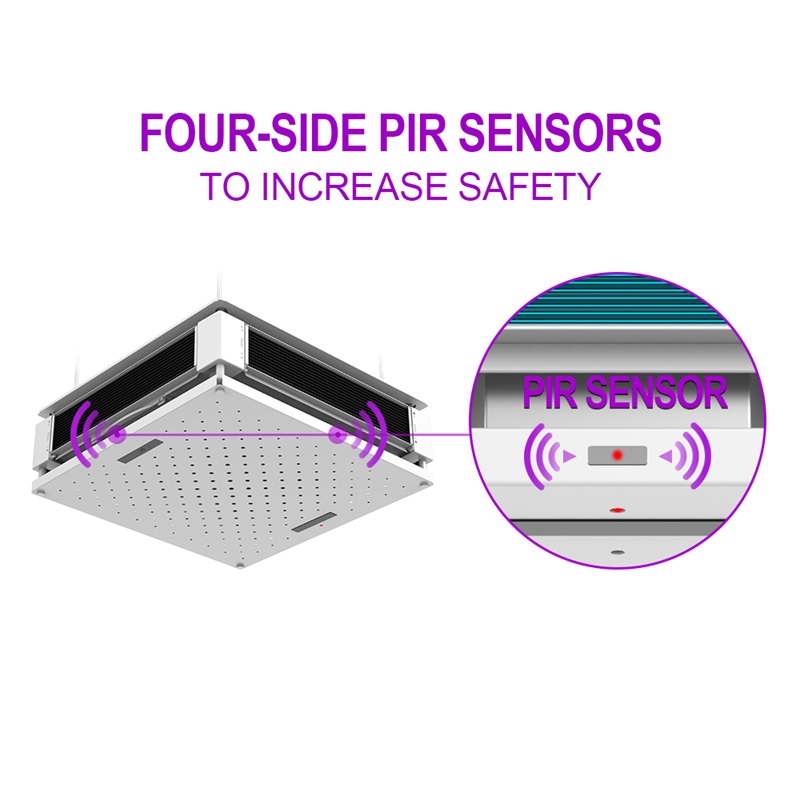

Four-sided PIR infrared induction design: 4-sided range induction, when people climb to the installation height, the UVC lamp will stop working, avoid UVC radiation to hurt people, and improve safety performance

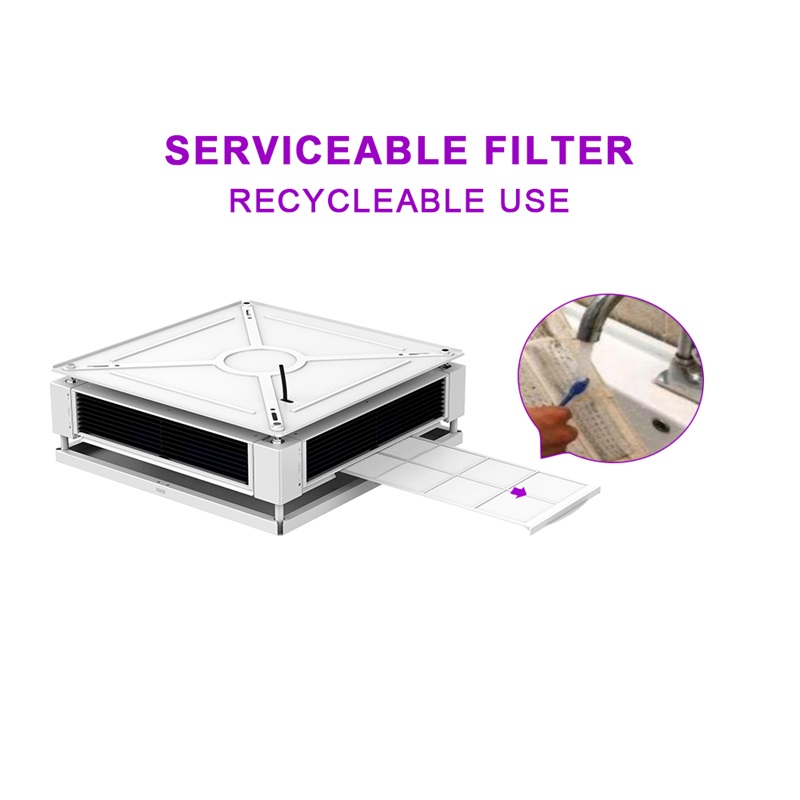

Detachable filter design, the filter can isolate the dust sucked in by the fan and ensure the cleanliness of the inside of the machine. At the same time, the filter can be directly washed with clean water and used repeatedly.
Instructions and Specification
Give us a call or send us a message with all your questions on UV disinfecting technology, our UV products, pricing, test results, or a Free UV Consultation!
